使用ORT进行语音降噪模型推理

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16

   ┌───────────────────────────────┐
   │ OrtEnv （运行时环境）         │
   │ └─ 管理全局资源、线程池等     │
   └──────────────┬────────────────┘
                  │
   ┌──────────────┴────────────────┐
   │ OrtSession （推理会话）        │
   │ └─ 持有已加载的 ONNX 模型      │
   └──────────────┬────────────────┘
                  │
   ┌──────────────┴────────────────────────┐
   │ OrtRun（一次推理调用）                │
   │ ├─ 输入 OrtValue (Tensor 等)           │
   │ ├─ 输出 OrtValue                      │
   │ └─ 在 Env/Session 的线程池中执行      │
   └────────────────────────────────────────┘

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

#include <onnxruntime_c_api.h>

// 创建运行时环境
OrtEnv* env = NULL;
OrtStatus* status = OrtCreateEnv(ORT_LOGGING_LEVEL_WARNING, "ORT", &env);
if (status != NULL) {
    // 错误处理
    const char* msg = OrtGetErrorMessage(status);
    OrtReleaseStatus(status);
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20

#include <onnxruntime_c_api.h>

// 1. 创建会话选项
OrtSessionOptions* session_options = NULL;
OrtCreateSessionOptions(&session_options);

// 2. 创建推理会话
OrtSession* session = NULL;
const char* model_path = "denoise_model.onnx";
status = OrtCreateSession(env, model_path, session_options, &session);
if (status != NULL) {
    // 错误处理
    const char* msg = OrtGetErrorMessage(status);
    OrtReleaseStatus(status);
}

// 3. 释放资源（使用完毕后）
OrtReleaseSessionOptions(session_options);
OrtReleaseSession(session);
OrtReleaseEnv(env);

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15

// CPU执行（默认，无需显式添加）
// 直接创建会话即可使用CPU

// CUDA执行（需要NVIDIA GPU）
OrtSessionOptionsAppendExecutionProvider_CUDA(session_options, 0);

// TensorRT执行（需要NVIDIA GPU和TensorRT）
OrtTensorRTProviderOptions trt_options = {0};
OrtSessionOptionsAppendExecutionProvider_TensorRT(session_options, &trt_options);

// CoreML执行（macOS/iOS）
OrtSessionOptionsAppendExecutionProvider_CoreML(session_options, 0);

// 创建会话（会按顺序尝试EP，失败则回退到下一个）
OrtCreateSession(env, model_path, session_options, &session);

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43

// 1. 获取输入输出信息
size_t num_input_nodes;
OrtStatus* status = OrtSessionGetInputCount(session, &num_input_nodes);

const char* input_name;
OrtTypeInfo* input_type_info;
OrtSessionGetInputName(session, 0, allocator, &input_name);
OrtSessionGetInputTypeInfo(session, 0, &input_type_info);

// 2. 准备输入数据
float input_data[] = { /* audio_features数据 */ };
int64_t input_shape[] = {1, 480};  // batch_size, feature_dim
size_t input_tensor_size = 480;

OrtValue* input_tensor = NULL;
OrtMemoryInfo* memory_info;
OrtCreateCpuMemoryInfo(OrtArenaAllocator, OrtMemTypeDefault, &memory_info);
OrtCreateTensorWithDataAsOrtValue(
    memory_info,
    input_data, input_tensor_size * sizeof(float),
    input_shape, 2,
    ONNX_TENSOR_ELEMENT_DATA_TYPE_FLOAT,
    &input_tensor
);

// 3. 执行推理
const char* input_names[] = {input_name};
const char* output_names[] = {"output"};  // 根据模型实际输出名称
OrtValue* output_tensor = NULL;

status = OrtRun(session, NULL,
    input_names, &input_tensor, 1,
    output_names, 1, &output_tensor);

// 4. 获取输出数据
float* output_data;
OrtGetTensorMutableData(output_tensor, (void**)&output_data);
// 使用output_data...

// 5. 释放资源
OrtReleaseValue(output_tensor);
OrtReleaseValue(input_tensor);
OrtReleaseMemoryInfo(memory_info);

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

OrtSessionOptions* session_options = NULL;
OrtCreateSessionOptions(&session_options);

// 图优化级别
// ORT_DISABLE_ALL, ORT_ENABLE_BASIC, ORT_ENABLE_EXTENDED, ORT_ENABLE_ALL
OrtSetSessionGraphOptimizationLevel(session_options, ORT_ENABLE_ALL);

// 线程数设置
OrtSetIntraOpNumThreads(session_options, 4);  // 算子内部并行线程数
OrtSetInterOpNumThreads(session_options, 2); // 算子间并行线程数

// 内存模式
OrtEnableMemPattern(session_options);  // 启用内存模式优化
OrtEnableCpuMemArena(session_options); // 启用CPU内存池

// 执行模式
OrtSetSessionExecutionMode(session_options, ORT_SEQUENTIAL);  // 顺序执行
// OrtSetSessionExecutionMode(session_options, ORT_PARALLEL);  // 并行执行

// 优化配置文件（可选，用于更精细的控制）
// OrtSetOptimizedModelFilePath(session_options, "optimized_model.onnx");

// 创建会话时应用这些选项
OrtCreateSession(env, model_path, session_options, &session);

// 使用完毕后释放
OrtReleaseSessionOptions(session_options);

1
2
3

# PyTorch训练时的行为
lstm = nn.LSTM(input_size, hidden_size)
output, (hidden, cell) = lstm(input, (hidden, cell))  # 状态在层内部管理

1
2
3

// ONNX模型结构
// 输入: [audio_features, hidden_state, cell_state]  // 显式输入
// 输出: [denoised_features, new_hidden_state, new_cell_state]  // 显式输出

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247

import keras.backend as K
from keras.constraints import Constraint
from keras.layers import Input, Dense, GRU, concatenate
from keras.models import Model


def my_crossentropy(y_true, y_pred):
    return K.mean(2 * K.abs(y_true - 0.5) * K.binary_crossentropy(y_pred, y_true), axis=-1)


def mymask(y_true):
    return K.minimum(y_true + 1.0, 1.0)


def msse(y_true, y_pred):
    return K.mean(mymask(y_true) * K.square(K.sqrt(y_pred) - K.sqrt(y_true)), axis=-1)


def mycost(y_true, y_pred):
    return K.mean(
        mymask(y_true)
        * (
            10 * K.square(K.square(K.sqrt(y_pred) - K.sqrt(y_true)))
            + K.square(K.sqrt(y_pred) - K.sqrt(y_true))
            + 0.01 * K.binary_crossentropy(y_pred, y_true)
        ),
        axis=-1,
    )


def my_accuracy(y_true, y_pred):
    return K.mean(2 * K.abs(y_true - 0.5) * K.equal(y_true, K.round(y_pred)), axis=-1)


class WeightClip(Constraint):
    # Accept **kwargs to be compatible with Keras deserialization that may pass 'name' etc.
    def __init__(self, c=2, **kwargs):  # kwargs may include 'name'
        super().__init__()
        self.c = c

    def __call__(self, p):
        return K.clip(p, -self.c, self.c)

    def get_config(self):
        return {'name': self.__class__.__name__, 'c': self.c}


CUSTOM_OBJECTS = {
    'my_crossentropy': my_crossentropy,
    'mymask': mymask,
    'msse': msse,
    'mycost': mycost,
    'my_accuracy': my_accuracy,
    'WeightClip': WeightClip,
}

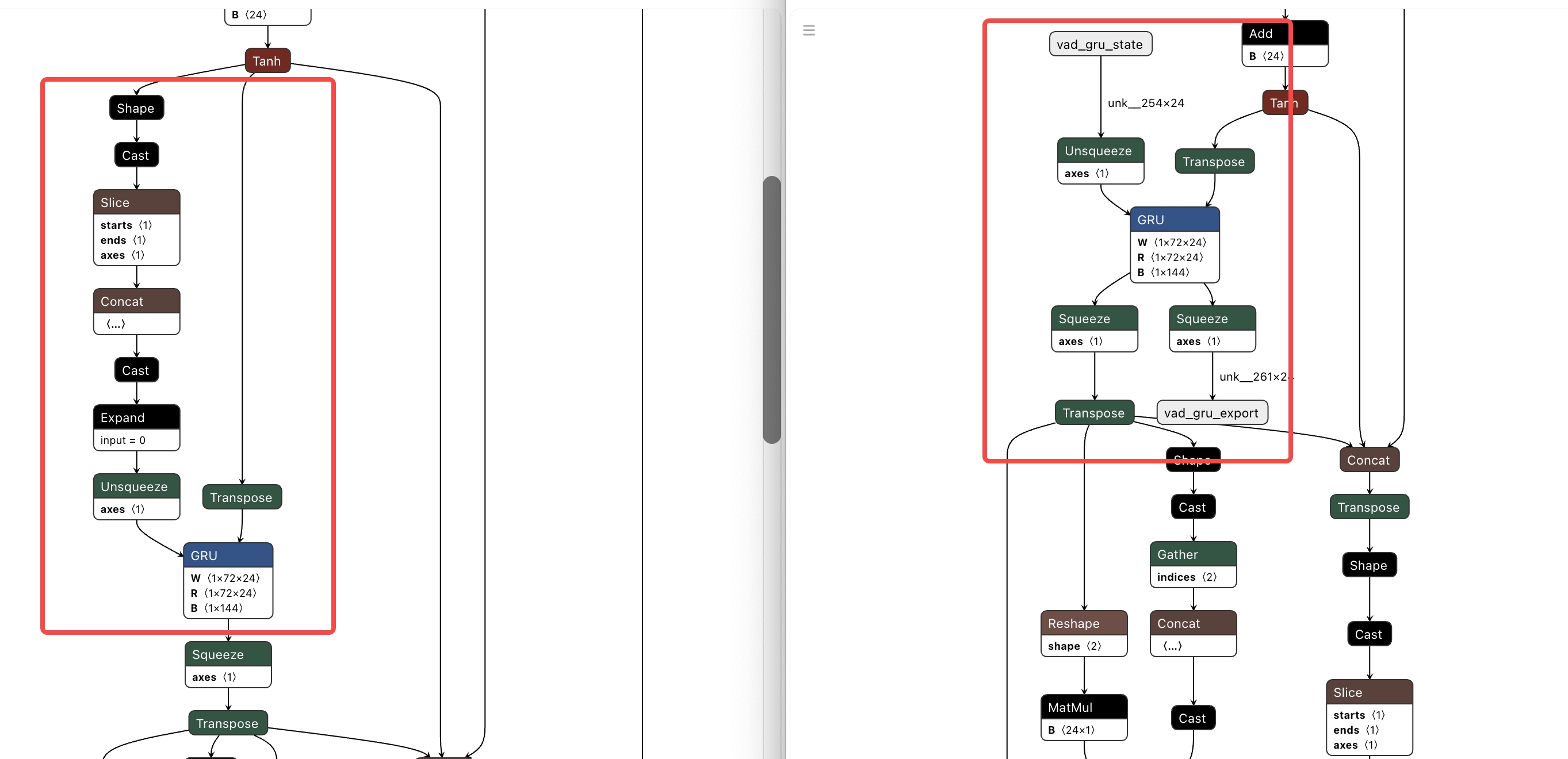

def rebuild_model_with_states(training_model: Model) -> Model:
    """
    自动重建模型，添加GRU隐状态输入/输出端口。
    如果模型已经有GRU状态端口，直接返回原模型。
    """
    # 检查是否已有GRU状态端口
    if len(training_model.inputs) == 4 and len(training_model.outputs) == 5:
        print("  Model already has GRU state ports, skipping rebuild")
        return training_model

    print("  Rebuilding model with GRU state inputs/outputs...")

    # 新的推理输入（带状态）
    features_in = Input(shape=(None, 42), name='features')
    vad_state_in = Input(shape=(24,), name='vad_gru_state')
    noise_state_in = Input(shape=(48,), name='noise_gru_state')
    denoise_state_in = Input(shape=(96,), name='denoise_gru_state')

    # 复制训练模型的层配置并加载权重
    # 1) input_dense
    input_dense_src = training_model.get_layer('input_dense')
    input_dense = Dense(24, activation='tanh', name='input_dense_export',
                        kernel_constraint=input_dense_src.kernel_constraint,
                        bias_constraint=input_dense_src.bias_constraint)
    tmp_export = input_dense(features_in)
    input_dense.set_weights(input_dense_src.get_weights())

    # 2) vad_gru (return_sequences+return_state)
    vad_gru_src = training_model.get_layer('vad_gru')
    vad_gru_exp = GRU(24, activation='tanh', recurrent_activation='sigmoid',
                      return_sequences=True, return_state=True, name='vad_gru_export',
                      kernel_regularizer=vad_gru_src.kernel_regularizer,
                      recurrent_regularizer=vad_gru_src.recurrent_regularizer,
                      kernel_constraint=vad_gru_src.kernel_constraint,
                      recurrent_constraint=vad_gru_src.recurrent_constraint,
                      bias_constraint=vad_gru_src.bias_constraint)
    vad_seq, vad_state_out = vad_gru_exp(tmp_export, initial_state=vad_state_in)
    vad_gru_exp.set_weights(vad_gru_src.get_weights())

    # 3) vad_output
    vad_output_src = training_model.get_layer('vad_output')
    vad_output_exp_layer = Dense(1, activation='sigmoid', name='vad_output_export',
                                 kernel_constraint=vad_output_src.kernel_constraint,
                                 bias_constraint=vad_output_src.bias_constraint)
    vad_output_exp = vad_output_exp_layer(vad_seq)
    vad_output_exp_layer.set_weights(vad_output_src.get_weights())

    # 4) noise_gru 输入：concat([tmp_export, vad_seq, features_in])
    noise_in = concatenate([tmp_export, vad_seq, features_in], name='noise_concat_export')
    noise_gru_src = training_model.get_layer('noise_gru')
    noise_gru_exp = GRU(48, activation='relu', recurrent_activation='sigmoid',
                        return_sequences=True, return_state=True, name='noise_gru_export',
                        kernel_regularizer=noise_gru_src.kernel_regularizer,
                        recurrent_regularizer=noise_gru_src.recurrent_regularizer,
                        kernel_constraint=noise_gru_src.kernel_constraint,
                        recurrent_constraint=noise_gru_src.recurrent_constraint,
                        bias_constraint=noise_gru_src.bias_constraint)
    noise_seq, noise_state_out = noise_gru_exp(noise_in, initial_state=noise_state_in)
    noise_gru_exp.set_weights(noise_gru_src.get_weights())

    # 5) denoise_gru 输入：concat([vad_seq, noise_seq, features_in])
    denoise_in = concatenate([vad_seq, noise_seq, features_in], name='denoise_concat_export')
    denoise_gru_src = training_model.get_layer('denoise_gru')
    denoise_gru_exp = GRU(96, activation='tanh', recurrent_activation='sigmoid',
                          return_sequences=True, return_state=True, name='denoise_gru_export',
                          kernel_regularizer=denoise_gru_src.kernel_regularizer,
                          recurrent_regularizer=denoise_gru_src.recurrent_regularizer,
                          kernel_constraint=denoise_gru_src.kernel_constraint,
                          recurrent_constraint=denoise_gru_src.recurrent_constraint,
                          bias_constraint=denoise_gru_src.bias_constraint)
    denoise_seq, denoise_state_out = denoise_gru_exp(denoise_in, initial_state=denoise_state_in)
    denoise_gru_exp.set_weights(denoise_gru_src.get_weights())

    # 6) denoise_output
    denoise_output_src = training_model.get_layer('denoise_output')
    denoise_output_exp_layer = Dense(22, activation='sigmoid', name='denoise_output_export',
                                     kernel_constraint=denoise_output_src.kernel_constraint,
                                     bias_constraint=denoise_output_src.bias_constraint)
    denoise_output_exp = denoise_output_exp_layer(denoise_seq)
    denoise_output_exp_layer.set_weights(denoise_output_src.get_weights())

    export_model = Model(
        inputs=[features_in, vad_state_in, noise_state_in, denoise_state_in],
        outputs=[denoise_output_exp, vad_output_exp, vad_state_out, noise_state_out, denoise_state_out],
        name='rnnoise_export_with_states'
    )

    print("  ✓ Model rebuilt successfully with GRU state ports")
    return export_model


def convert(hdf5_path: str, onnx_path: str, opset: int = 13, auto_rebuild: bool = False) -> None:
    if not os.path.isfile(hdf5_path):
        raise FileNotFoundError(f"HDF5 model not found: {hdf5_path}")

    print(f"Loading Keras model from: {hdf5_path}")
    # Load with custom objects registered for deserialization
    model = keras.models.load_model(hdf5_path, custom_objects=CUSTOM_OBJECTS)

    # Auto-rebuild model with GRU states if needed
    if auto_rebuild:
        print("\n=== Auto-Rebuild Mode ===")
        print("  Checking if model needs GRU state ports...")
        model = rebuild_model_with_states(model)
        print("  Model ready for conversion with GRU state ports\n")

    # Check if the model has GRU state inputs/outputs
    num_inputs = len(model.inputs)
    num_outputs = len(model.outputs)

    print(f"Model has {num_inputs} input(s) and {num_outputs} output(s)")

    # Print input information
    for i, inp in enumerate(model.inputs):
        print(f"  Input {i}: {inp.name}, shape: {inp.shape}")

    # Print output information
    for i, out in enumerate(model.outputs):
        print(f"  Output {i}: {out.name}, shape: {out.shape}")

    # Check if this is a model with GRU states (4 inputs and 5 outputs)
    if num_inputs == 4 and num_outputs == 5:
        print("Detected model with GRU state inputs/outputs")
        # Build input signature for model with efficient state management
        input_specs = []
        for inp in model.inputs:
            inp_name = inp.name.split(':')[0]
            inp_shape = inp.shape.as_list()

            # Handle different input shapes
            if len(inp_shape) == 3:  # features: (None, None, 42)
                spec = tf.TensorSpec([None, None, inp_shape[2]], tf.float32, name=inp_name)
            elif len(inp_shape) == 2:  # GRU states: (None, hidden_size)
                spec = tf.TensorSpec([None, inp_shape[1]], tf.float32, name=inp_name)
            else:
                # Fallback: use dynamic shape
                spec = tf.TensorSpec([None] * len(inp_shape), tf.float32, name=inp_name)

            input_specs.append(spec)

        print(f"Converting to ONNX (opset {opset}) with GRU state inputs/outputs...")
        # Convert with all input signatures
        tf2onnx.convert.from_keras(model, input_signature=input_specs, output_path=onnx_path, opset=opset)

    elif num_inputs == 1:
        print("Detected standard model without GRU state ports")
        # Use a dynamic input signature (None, None, 42) to preserve time dimension flexibility
        input_name = model.inputs[0].name.split(':')[0]
        spec = (tf.TensorSpec([None, None, 42], tf.float32, name=input_name),)

        print(f"Converting to ONNX (opset {opset})...")
        # Convert directly from the Keras model
        tf2onnx.convert.from_keras(model, input_signature=spec, output_path=onnx_path, opset=opset)
    else:
        # Generic conversion for models with multiple inputs but unknown structure
        print(f"Converting to ONNX (opset {opset}) with {num_inputs} inputs...")
        input_specs = []
        for inp in model.inputs:
            inp_name = inp.name.split(':')[0]
            inp_shape = inp.shape.as_list()
            # Use dynamic shapes for flexibility
            spec = tf.TensorSpec([None] * len(inp_shape), tf.float32, name=inp_name)
            input_specs.append(spec)
        tf2onnx.convert.from_keras(model, input_signature=input_specs, output_path=onnx_path, opset=opset)

    print(f"Saved ONNX model to: {onnx_path}")


def main():
    parser = argparse.ArgumentParser(description='Convert Keras HDF5 model to ONNX for RNNoise.')
    parser.add_argument('--input', '-i', required=True, help='Path to Keras HDF5 model file')
    parser.add_argument('--output', '-o', required=False, help='Path to output ONNX file')
    parser.add_argument('--opset', type=int, default=13, help='ONNX opset version (default: 13)')
    parser.add_argument('--auto-rebuild', action='store_true',
                        help='Automatically rebuild model with GRU state ports if missing')
    args = parser.parse_args()

    input_path = os.path.abspath(args.input)
    output_path = args.output
    if not output_path:
        base, _ = os.path.splitext(input_path)
        output_path = base + '.onnx'
    output_path = os.path.abspath(output_path)

    os.makedirs(os.path.dirname(output_path), exist_ok=True)

    convert(input_path, output_path, opset=args.opset, auto_rebuild=args.auto_rebuild)

if __name__ == '__main__':
    main()

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379

// Initialize ONNX model
int initialize_onnx_model(RNNoiseContext* ctx, const char* model_path) {
    // Get ONNX Runtime API
    const OrtApiBase* api_base = OrtGetApiBase();
    if (!api_base) {
        fprintf(stderr, "Error getting ONNX Runtime API base\n");
        return -1;
    }

    ctx->api = api_base->GetApi(ORT_API_VERSION);
    if (!ctx->api) {
        fprintf(stderr, "Error getting ONNX Runtime API\n");
        return -1;
    }

    // Initialize ONNX Runtime environment
    OrtStatus* status = ctx->api->CreateEnv(ORT_LOGGING_LEVEL_WARNING, "RNNoiseONNX", &ctx->env);
    if (status != NULL) {
        fprintf(stderr, "Error creating ONNX Runtime environment\n");
        return -1;
    }

    // Create session options
    status = ctx->api->CreateSessionOptions(&ctx->session_options);
    if (status != NULL) {
        fprintf(stderr, "Error creating session options\n");
        return -1;
    }

    // Set session options
    status = ctx->api->SetIntraOpNumThreads(ctx->session_options, 1);
    if (status != NULL) {
        fprintf(stderr, "Error setting intra-op threads\n");
        return -1;
    }

    status = ctx->api->SetSessionGraphOptimizationLevel(ctx->session_options, ORT_ENABLE_EXTENDED);
    if (status != NULL) {
        fprintf(stderr, "Error setting optimization level\n");
        return -1;
    }

    // Create session
    status = ctx->api->CreateSession(ctx->env, model_path, ctx->session_options, &ctx->session);
    if (status != NULL) {
        fprintf(stderr, "Error creating ONNX session\n");
        return -1;
    }

    // Get allocator
    status = ctx->api->GetAllocatorWithDefaultOptions(&ctx->allocator);
    if (status != NULL) {
        fprintf(stderr, "Error getting allocator\n");
        return -1;
    }

    // Get input/output names
    size_t num_input_nodes, num_output_nodes;
    status = ctx->api->SessionGetInputCount(ctx->session, &num_input_nodes);
    if (status != NULL) {
        fprintf(stderr, "Error getting input count\n");
        return -1;
    }

    status = ctx->api->SessionGetOutputCount(ctx->session, &num_output_nodes);
    if (status != NULL) {
        fprintf(stderr, "Error getting output count\n");
        return -1;
    }

    printf("ONNX Model Info:\n");
    printf("  Input nodes: %zu\n", num_input_nodes);
    printf("  Output nodes: %zu\n", num_output_nodes);

    // Detect model type: 4 inputs + 5 outputs = model with GRU states
    ctx->has_gru_states = (num_input_nodes == 4 && num_output_nodes == 5);

    if (ctx->has_gru_states) {
        printf("  Model type: WITH GRU state inputs/outputs\n");

        // Get all input names
        status = ctx->api->SessionGetInputName(ctx->session, 0, ctx->allocator, &ctx->input_name);
        if (status != NULL) {
            fprintf(stderr, "Error getting features input name\n");
            return -1;
        }
        status = ctx->api->SessionGetInputName(ctx->session, 1, ctx->allocator, &ctx->input_name_vad_state);
        if (status != NULL) {
            fprintf(stderr, "Error getting VAD state input name\n");
            return -1;
        }
        status = ctx->api->SessionGetInputName(ctx->session, 2, ctx->allocator, &ctx->input_name_noise_state);
        if (status != NULL) {
            fprintf(stderr, "Error getting noise state input name\n");
            return -1;
        }
        status = ctx->api->SessionGetInputName(ctx->session, 3, ctx->allocator, &ctx->input_name_denoise_state);
        if (status != NULL) {
            fprintf(stderr, "Error getting denoise state input name\n");
            return -1;
        }

        // Get all output names
        status = ctx->api->SessionGetOutputName(ctx->session, 0, ctx->allocator, &ctx->output_name_denoise);
        if (status != NULL) {
            fprintf(stderr, "Error getting denoise output name\n");
            return -1;
        }
        status = ctx->api->SessionGetOutputName(ctx->session, 1, ctx->allocator, &ctx->output_name_vad);
        if (status != NULL) {
            fprintf(stderr, "Error getting VAD output name\n");
            return -1;
        }
        status = ctx->api->SessionGetOutputName(ctx->session, 2, ctx->allocator, &ctx->output_name_vad_state);
        if (status != NULL) {
            fprintf(stderr, "Error getting VAD state output name\n");
            return -1;
        }
        status = ctx->api->SessionGetOutputName(ctx->session, 3, ctx->allocator, &ctx->output_name_noise_state);
        if (status != NULL) {
            fprintf(stderr, "Error getting noise state output name\n");
            return -1;
        }
        status = ctx->api->SessionGetOutputName(ctx->session, 4, ctx->allocator, &ctx->output_name_denoise_state);
        if (status != NULL) {
            fprintf(stderr, "Error getting denoise state output name\n");
            return -1;
        }

        printf("  Inputs:\n");
        printf("    [0] %s (features)\n", ctx->input_name);
        printf("    [1] %s (VAD GRU state)\n", ctx->input_name_vad_state);
        printf("    [2] %s (noise GRU state)\n", ctx->input_name_noise_state);
        printf("    [3] %s (denoise GRU state)\n", ctx->input_name_denoise_state);
        printf("  Outputs:\n");
        printf("    [0] %s (denoise)\n", ctx->output_name_denoise);
        printf("    [1] %s (VAD)\n", ctx->output_name_vad);
        printf("    [2] %s (VAD GRU state)\n", ctx->output_name_vad_state);
        printf("    [3] %s (noise GRU state)\n", ctx->output_name_noise_state);
        printf("    [4] %s (denoise GRU state)\n", ctx->output_name_denoise_state);
    } else {
        printf("  Model type: Standard (without GRU state ports)\n");

        // Get input name (standard model)
        status = ctx->api->SessionGetInputName(ctx->session, 0, ctx->allocator, &ctx->input_name);
        if (status != NULL) {
            fprintf(stderr, "Error getting input name\n");
            return -1;
        }

        // Get output names (standard model)
        status = ctx->api->SessionGetOutputName(ctx->session, 0, ctx->allocator, &ctx->output_name_denoise);
        if (status != NULL) {
            fprintf(stderr, "Error getting denoise output name\n");
            return -1;
        }

        status = ctx->api->SessionGetOutputName(ctx->session, 1, ctx->allocator, &ctx->output_name_vad);
        if (status != NULL) {
            fprintf(stderr, "Error getting VAD output name\n");
            return -1;
        }

        printf("  Input: %s\n", ctx->input_name);
        printf("  Output denoise: %s\n", ctx->output_name_denoise);
        printf("  Output VAD: %s\n", ctx->output_name_vad);
    }

    // Allocate buffers
    ctx->input_buffer = (float*)malloc(FRAME_SIZE * sizeof(float));
    ctx->output_buffer = (float*)malloc(FRAME_SIZE * sizeof(float));

    if (!ctx->input_buffer || !ctx->output_buffer) {
        fprintf(stderr, "Error: Memory allocation failed\n");
        return -1;
    }

    // Initialize RNNoise state for feature extraction
    ctx->denoise_state = rnnoise_create(NULL);
    if (!ctx->denoise_state) {
        fprintf(stderr, "Error: Failed to create RNNoise state\n");
        return -1;
    }
    rnnoise_init(ctx->denoise_state, NULL);

    // Initialize biquad filter memory
    ctx->mem_hp_x[0] = 0.0f;
    ctx->mem_hp_x[1] = 0.0f;

    // Initialize processing buffers
    memset(ctx->X, 0, sizeof(ctx->X));
    memset(ctx->P, 0, sizeof(ctx->P));
    memset(ctx->Ex, 0, sizeof(ctx->Ex));
    memset(ctx->Ep, 0, sizeof(ctx->Ep));
    memset(ctx->Exp, 0, sizeof(ctx->Exp));
    memset(ctx->lastg, 0, sizeof(ctx->lastg));
    memset(ctx->synthesis_mem, 0, sizeof(ctx->synthesis_mem));

    // Initialize frame count
    ctx->frame_count = 0;

    // Initialize GRU states if model supports it
    initialize_gru_states(ctx);

    printf("ONNX model loaded successfully: %s\n", model_path);
    return 0;
}

// Initialize GRU states
void initialize_gru_states(RNNoiseContext* ctx) {
    memset(ctx->vad_gru_state, 0, sizeof(ctx->vad_gru_state));
    memset(ctx->noise_gru_state, 0, sizeof(ctx->noise_gru_state));
    memset(ctx->denoise_gru_state, 0, sizeof(ctx->denoise_gru_state));
    ctx->gru_states_initialized = 0;
}

// ONNX inference with external state management
int onnx_inference_with_states(RNNoiseContext* ctx, const float* features, float* gains, float* vad) {
    // Prepare separate input tensors for features and GRU states
    float features_data[42];
    float vad_state_data[24];
    float noise_state_data[48];
    float denoise_state_data[96];

    // Copy features
    memcpy(features_data, features, 42 * sizeof(float));

    // Copy GRU states (use saved states for next frame)
    memcpy(vad_state_data, ctx->vad_gru_state, 24 * sizeof(float));
    memcpy(noise_state_data, ctx->noise_gru_state, 48 * sizeof(float));
    memcpy(denoise_state_data, ctx->denoise_gru_state, 96 * sizeof(float));

    // Create input tensors
    const int64_t features_shape[] = {1, 1, 42};
    const int64_t vad_state_shape[] = {1, 24};
    const int64_t noise_state_shape[] = {1, 48};
    const int64_t denoise_state_shape[] = {1, 96};

    OrtMemoryInfo* memory_info;
    OrtStatus* status = ctx->api->CreateCpuMemoryInfo(OrtArenaAllocator, OrtMemTypeDefault, &memory_info);
    if (status != NULL) {
        fprintf(stderr, "Error creating memory info\n");
        return -1;
    }

    // Create input tensors
    OrtValue* features_tensor = NULL;
    OrtValue* vad_state_tensor = NULL;
    OrtValue* noise_state_tensor = NULL;
    OrtValue* denoise_state_tensor = NULL;

    status = ctx->api->CreateTensorWithDataAsOrtValue(
        memory_info, features_data, 42 * sizeof(float),
        features_shape, 3, ONNX_TENSOR_ELEMENT_DATA_TYPE_FLOAT, &features_tensor);
    if (status != NULL) {
        fprintf(stderr, "Error creating features tensor\n");
        ctx->api->ReleaseMemoryInfo(memory_info);
        return -1;
    }

    status = ctx->api->CreateTensorWithDataAsOrtValue(
        memory_info, vad_state_data, 24 * sizeof(float),
        vad_state_shape, 2, ONNX_TENSOR_ELEMENT_DATA_TYPE_FLOAT, &vad_state_tensor);
    if (status != NULL) {
        fprintf(stderr, "Error creating VAD state tensor\n");
        ctx->api->ReleaseValue(features_tensor);
        ctx->api->ReleaseMemoryInfo(memory_info);
        return -1;
    }

    status = ctx->api->CreateTensorWithDataAsOrtValue(
        memory_info, noise_state_data, 48 * sizeof(float),
        noise_state_shape, 2, ONNX_TENSOR_ELEMENT_DATA_TYPE_FLOAT, &noise_state_tensor);
    if (status != NULL) {
        fprintf(stderr, "Error creating noise state tensor\n");
        ctx->api->ReleaseValue(features_tensor);
        ctx->api->ReleaseValue(vad_state_tensor);
        ctx->api->ReleaseMemoryInfo(memory_info);
        return -1;
    }

    status = ctx->api->CreateTensorWithDataAsOrtValue(
        memory_info, denoise_state_data, 96 * sizeof(float),
        denoise_state_shape, 2, ONNX_TENSOR_ELEMENT_DATA_TYPE_FLOAT, &denoise_state_tensor);
    if (status != NULL) {
        fprintf(stderr, "Error creating denoise state tensor\n");
        ctx->api->ReleaseValue(features_tensor);
        ctx->api->ReleaseValue(vad_state_tensor);
        ctx->api->ReleaseValue(noise_state_tensor);
        ctx->api->ReleaseMemoryInfo(memory_info);
        return -1;
    }

    // Prepare input names and tensors
    const char* input_names[] = {ctx->input_name, ctx->input_name_vad_state,
                                 ctx->input_name_noise_state, ctx->input_name_denoise_state};
    OrtValue* input_tensors[] = {features_tensor, vad_state_tensor, noise_state_tensor, denoise_state_tensor};

    // Prepare output names
    const char* output_names[] = {ctx->output_name_denoise, ctx->output_name_vad,
                                  ctx->output_name_vad_state, ctx->output_name_noise_state,
                                  ctx->output_name_denoise_state};
    OrtValue* output_tensors[5] = {NULL, NULL, NULL, NULL, NULL};

    // Run inference
    status = ctx->api->Run(ctx->session, NULL, input_names, (const OrtValue* const*)input_tensors, 4,
                   output_names, 5, output_tensors);
    if (status != NULL) {
        fprintf(stderr, "Error running inference\n");
        ctx->api->ReleaseValue(features_tensor);
        ctx->api->ReleaseValue(vad_state_tensor);
        ctx->api->ReleaseValue(noise_state_tensor);
        ctx->api->ReleaseValue(denoise_state_tensor);
        ctx->api->ReleaseMemoryInfo(memory_info);
        return -1;
    }

    // Get output data
    float* denoise_output = NULL;
    float* vad_output = NULL;
    float* updated_vad_state = NULL;
    float* updated_noise_state = NULL;
    float* updated_denoise_state = NULL;

    status = ctx->api->GetTensorMutableData(output_tensors[0], (void**)&denoise_output);
    if (status != NULL) {
        fprintf(stderr, "Error getting denoise output data\n");
        goto cleanup;
    }

    status = ctx->api->GetTensorMutableData(output_tensors[1], (void**)&vad_output);
    if (status != NULL) {
        fprintf(stderr, "Error getting VAD output data\n");
        goto cleanup;
    }

    status = ctx->api->GetTensorMutableData(output_tensors[2], (void**)&updated_vad_state);
    if (status != NULL) {
        fprintf(stderr, "Error getting updated VAD state data\n");
        goto cleanup;
    }

    status = ctx->api->GetTensorMutableData(output_tensors[3], (void**)&updated_noise_state);
    if (status != NULL) {
        fprintf(stderr, "Error getting updated noise state data\n");
        goto cleanup;
    }

    status = ctx->api->GetTensorMutableData(output_tensors[4], (void**)&updated_denoise_state);
    if (status != NULL) {
        fprintf(stderr, "Error getting updated denoise state data\n");
        goto cleanup;
    }

    // Store results
    memcpy(gains, denoise_output, NB_BANDS * sizeof(float));
    *vad = vad_output[0];

    // Update GRU states with the outputs from the model (for next frame)
    memcpy(ctx->vad_gru_state, updated_vad_state, 24 * sizeof(float));
    memcpy(ctx->noise_gru_state, updated_noise_state, 48 * sizeof(float));
    memcpy(ctx->denoise_gru_state, updated_denoise_state, 96 * sizeof(float));
    ctx->gru_states_initialized = 1;

cleanup:
    // Cleanup
    ctx->api->ReleaseValue(features_tensor);
    ctx->api->ReleaseValue(vad_state_tensor);
    ctx->api->ReleaseValue(noise_state_tensor);
    ctx->api->ReleaseValue(denoise_state_tensor);
    for (int i = 0; i < 5; i++) {
        if (output_tensors[i]) {
            ctx->api->ReleaseValue(output_tensors[i]);
        }
    }
    ctx->api->ReleaseMemoryInfo(memory_info);

    return 0;
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16

=== Overall Inference Time Statistics ===
Total frames processed: 2048
Frames with inference: 2047

ONNX Inference:
  Total time: 73.568 ms
  Average per frame: 0.036 ms

C Inference:
  Total time: 349.820 ms
  Average per frame: 0.171 ms

Comparison:
  ONNX / C ratio: 0.21x
  Speedup: 4.76x (ONNX faster)
==========================================
